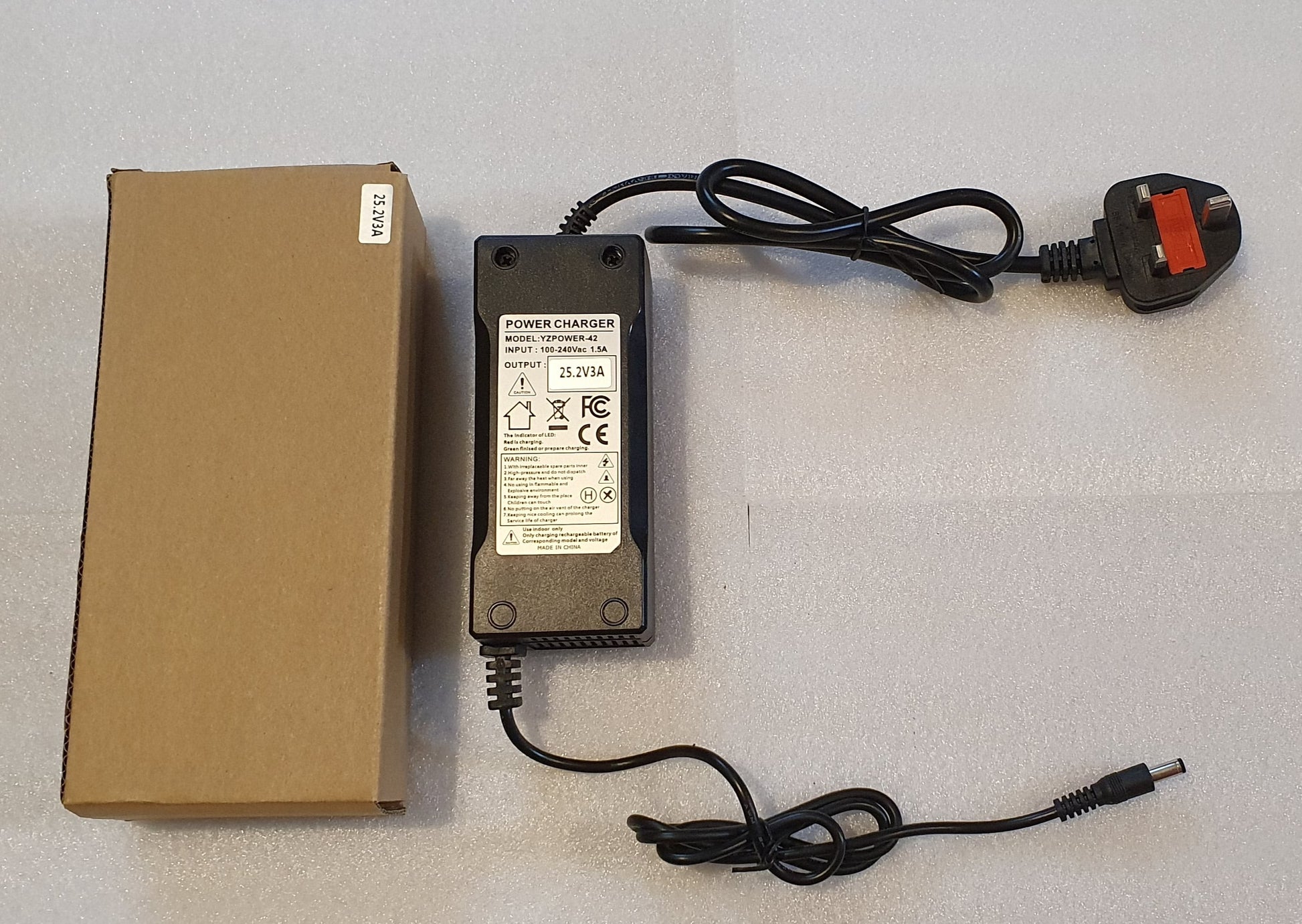

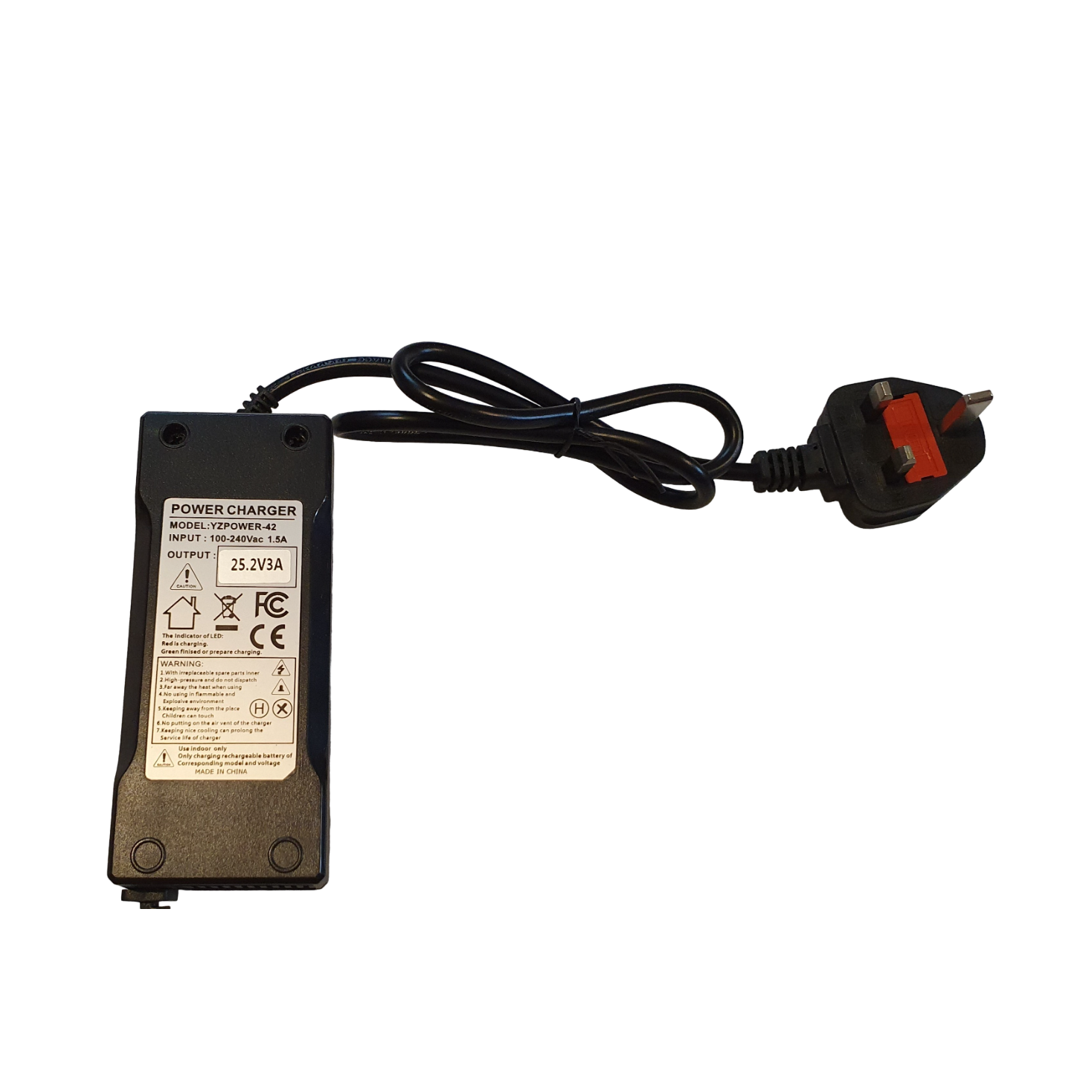

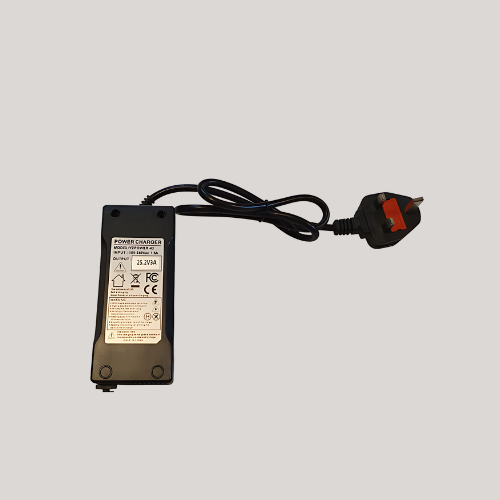

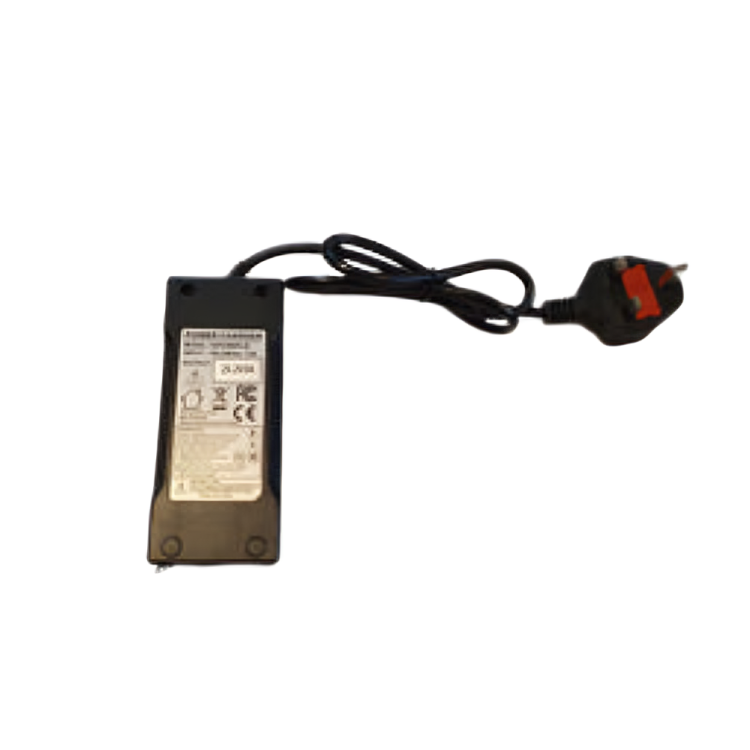

25.2V 3A Lithium Battery Charger - for 22.2 (24V) 6S Li-ion/LiPo battery pack; UK, EU plug

7 In Stock

25.2V 3A Lithium Battery Charger -  for 22.2V (24V) 6S Li-ion/LiPo battery pack;  UK, EU plug Charging voltage: 25.2V CC/CV          green light -  when fully charged or not connected.          red light - charging Protections: constant voltage, constant current, over-voltage, over current protection function; indicator light...
-
+
£32.99

25.2V 3A Lithium Battery Charger -  for 22.2V (24V) 6S Li-ion/LiPo battery pack;  UK, EU plug

Charging voltage: 25.2V CC/CV

         green light -  when fully charged or not connected.

         red light - charging

Protections:

constant voltage, constant current, over-voltage, over current protection function; indicator light conversion; automatic recovery.



Connectors:  default is DC 5.5x2.1 mm

                 Other connectors are available as well.

Output current -  3A, constant current charging, the indicator light is red
Conversion current, 300mA, after full conversion, the indicator light is green
Efficiency, >80% (maximum output voltage, full load)
Input voltage range, 220~ 240VAC; 47 ~ 63Hz;
Input current, 0.03A/230V
Overload protection, 105%~150%, Type: FOLDBACK current limit output Reset: automatic recovery
Temperature coefficient, ±0.03% °C (0 ~ 50 °C) OUTPUT
Working temperature, humidity, -10 ° C ~ +50 ° C, 20% ~ 90% RH
Storage temperature, temperature, -10 ° C ~ +60 ° C, 20% ~ 90% RH
Dimensions, 115 × 48 × 28mm
Weight, 160G
